5.1Channels

Whew!! It is starting to come together. Channels is a little lengthy but this is finnaly where you program the frequencies for the radio. We'll take a simplex channel first.

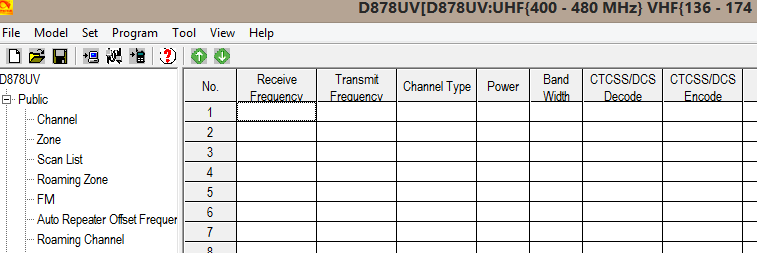

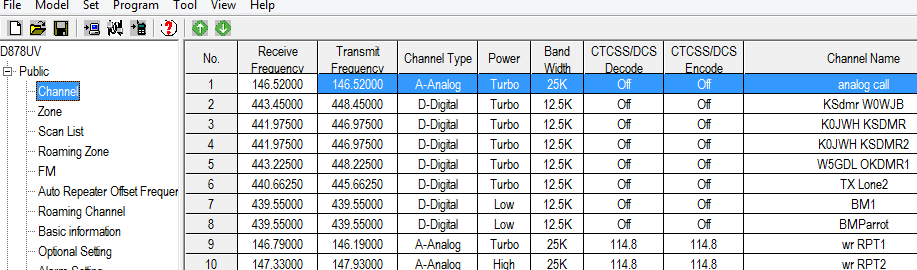

Above will be what you will see if you have some channels already made but below is if you are atarting new.

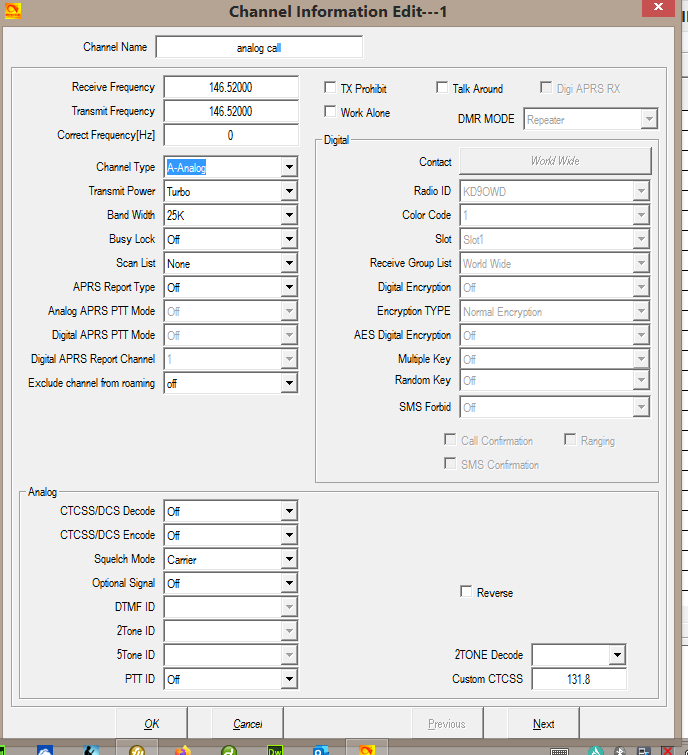

Double click number 1 and will will then input the analog vhf call channel which is a simplex channel.

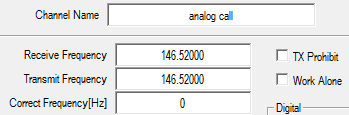

1.Channel Name: Analog Call or any name you would like. This will show on the radio for channel name.

2. TX and RX frequencies: Make both 146.52000 which is the vhf call frequency.

Now.
